[Article & AddIn] How to paste into a filtered range

[Andreas Killer]

We have a filtered area and in this area a range is selected. Let's take a look at what happens when we just write an array in there.

Sub MultipleDestinationCells_DontWork()
  Dim Dest As Range
  Dim r As Long, c As Long
  Dim Data
  'Create the scenario
  ScenarioB

  'Get the visible selected cells
  Set Dest = SpecialCells(Selection, xlCellTypeVisible)
  'Do we have any?
  If Dest Is Nothing Then
    MsgBox "No visible cells selected"
    Exit Sub
  End If
  'Get the number of rows and columns
  RangeCount Dest, r, MaxColumns:=c
  'Create an array of that size and fill it:
  '11 12
  '21 22
  '31 32
  ReDim Data(1 To r, 1 To c)
  For c = 1 To UBound(Data, 2)
    For r = 1 To UBound(Data)
      Data(r, c) = r * 10 + c
    Next
  Next
  'Write it into
  Dest.Value = Data
End Sub

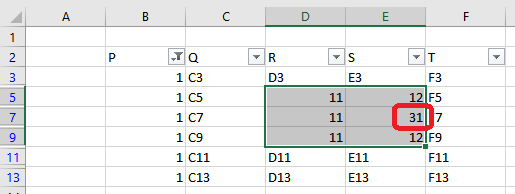

Surprisingly, we don't get an error message and the filtered cells are not overwritten, but the values in the cells are completely wrong.



It would still be understandable that we always get an 11 in the first column and always a 12 in the second. However, why a 31 appears in E7 is incomprehensible even to me. It obviously doesn't work that way at all.
We need to traverse the visible area, but not cell by cell. Multiple ranges in a Range object are automatically divided into Areas, and we can write a suitable array into each Area. So, we need a routine that copies the appropriate portion from our data array. Then we just need to execute a counter to get the next portion for the next range.

Sub MultipleDestinationCells_Works()
  Dim Dest As Range, Area As Range
  Dim r As Long, c As Long
  Dim Data, Part
  'Create the scenario
  ScenarioB

  'Get the visible selected cells
  Set Dest = SpecialCells(Selection, xlCellTypeVisible)
  'Do we have any?
  If Dest Is Nothing Then
    MsgBox "No visible cells selected"
    Exit Sub
  End If
  'Get the number of rows and columns
  RangeCount Dest, r, MaxColumns:=c
  'Create an array of that size
  ReDim Data(1 To r, 1 To c)
  For c = 1 To UBound(Data, 2)
    For r = 1 To UBound(Data)
      Data(r, c) = r * 10 + c
    Next
  Next
  'We start at row 1 always!
  r = 1
  For Each Area In Dest.Areas
    'Copy the part of the Data array that fit's into the Area
    CopyPart Data, Part, r, 1, Area.Rows.Count, Area.Columns.Count
    'Write into
    Area.Value = Part
    'Increment the row counter
    r = r + Area.Rows.Count
  Next
End Sub

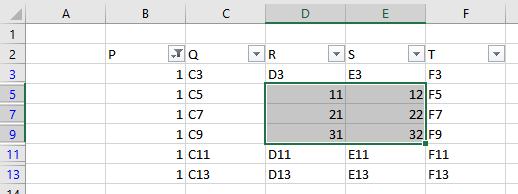

And that's it.



Finally, there is just one more detail to note: If you copy data from an HTML source, you may get several arrays. In order to keep the arrays as small as possible, these arrays are not combined into one, but processed individually one after the other. If you have any questions about the tool or the explanations, please post them here. I'll do my best to explain them to you.

Best regards, Andreas.
